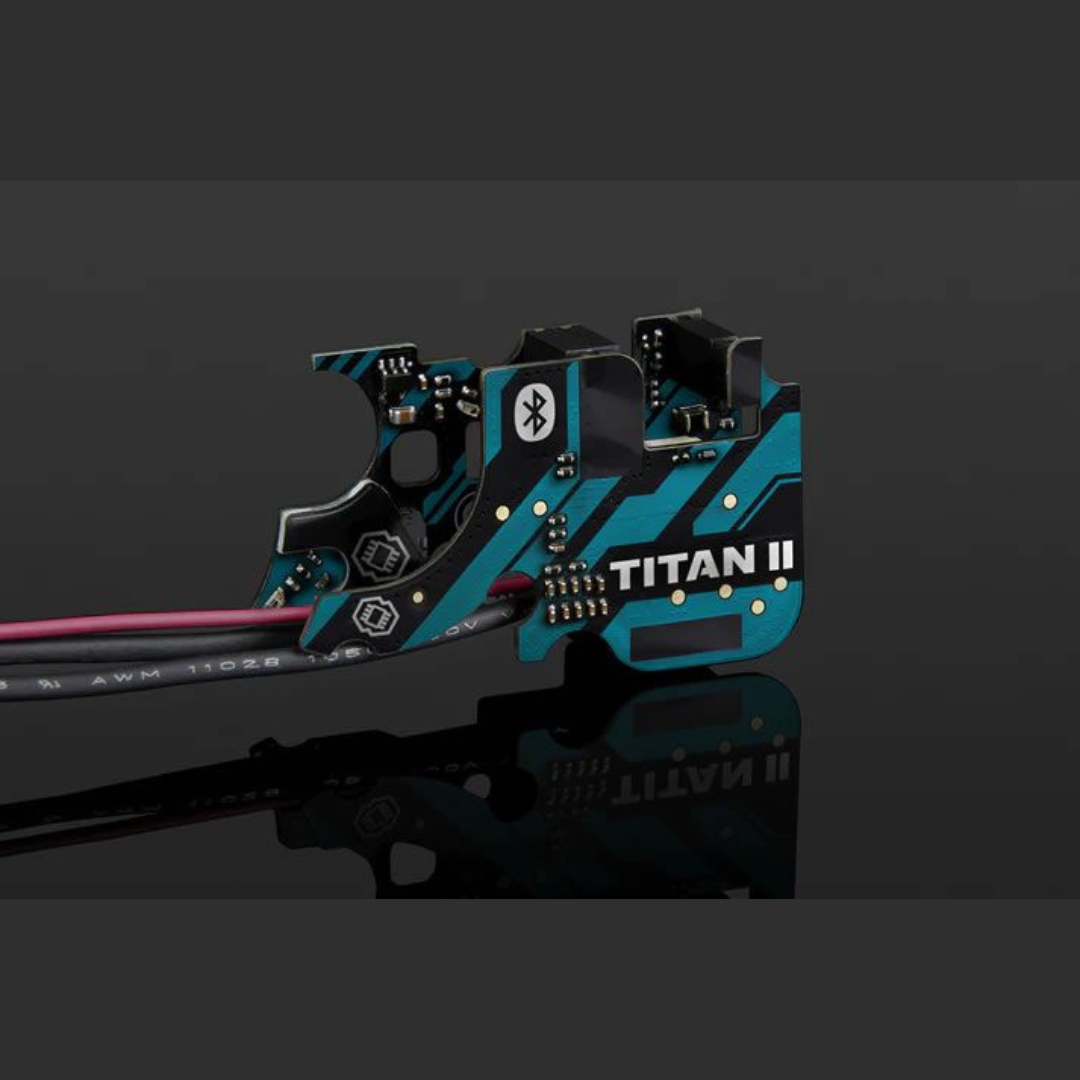

TITAN II Bluetooth® for V2 Gearbox [HPA Rear Wired]

Brand new TITAN II Bluetooth® for V2 GB is GATE flagship Electronic Trigger Unit (ETU).  Built-in Bluetooth 5.2 technology gives you direct access to TITAN settings, AEG telemetry and ability to use smartwatch, STATUS and other future devices of GATE Ecosystem. Innovative gear sensor not only counts each tooth, but also as first in the world determines the direction of a gear rotation, offering you the most precise cycle control in AEGs. Mind-blowing optical trigger sensor allows you for setting hair trigger with ludicrous precision: even 50 sensitivity levels for the first millimeter of trigger movement, keeping TITAN V2 sensor advantages. TITAN II Bluetooth® is equipped with a multifunctional port ready for connecting additional accessories such as bolt-catch, magazine sensor, tracer in hop-up chamber and others.

What makes TITAN II Bluetooth® so special?

• Mind-blowing trigger sensor with the TITAN V2 sensor advantages and ability to set hair trigger with ludicrous precision: even 50 sensitivity levels for the first millimeter of trigger movement

• Brand new patented gear sensor, as first in the world, detects each tooth and the direction of gear movement what allows for extremely precise cycle control

• Mechanical protection of trigger sensors increases reliability. A potential trigger sensors' damage is now covered by the warranty.

• Ultra-precise telemetry measurements thanks to the new current sensor

• Pre-cocking can be set in %

• Built-in voltage boost converter. Trouble-free operation in low temperatures

• Multifunctional programmable port ready for connecting:

  • Hop-up chamber to tracer and sensors

  • Bolt-catch button

  • HPA Engine (Single solenoid. For dual solenoid engine you need an additional cable or HPA wiring version)

  • Electric Magazine

  • Magazine sensor

  • Flashlight

  • Others

• User-friendly GCS app for iOS, Android, macOS, Windows, watchOS, Wear OS

• TITAN II can be connected with smartwatch out-of-the-box

• Compatibility with GATE Ecosystem including GATE STATUS and future hop-up chamber with tracer

• Lowest in the market current consumption. Deep sleep mode with only 0.1 mA current consumption prevents battery discharge (3x lower consumption than in current ETUs, which already had the lowest current consumption on the market).

Multifunctional port:

• 2x I/O port

• UART / I2C communication

• Programmable power supply with eFuse

  • Current: max 5.4A peak and 1.5A constant current

  • Voltage: same as battery voltage

Revision 2 - Increased wire diameters in the TITAN II Bluetooth HPA installation for better durability
